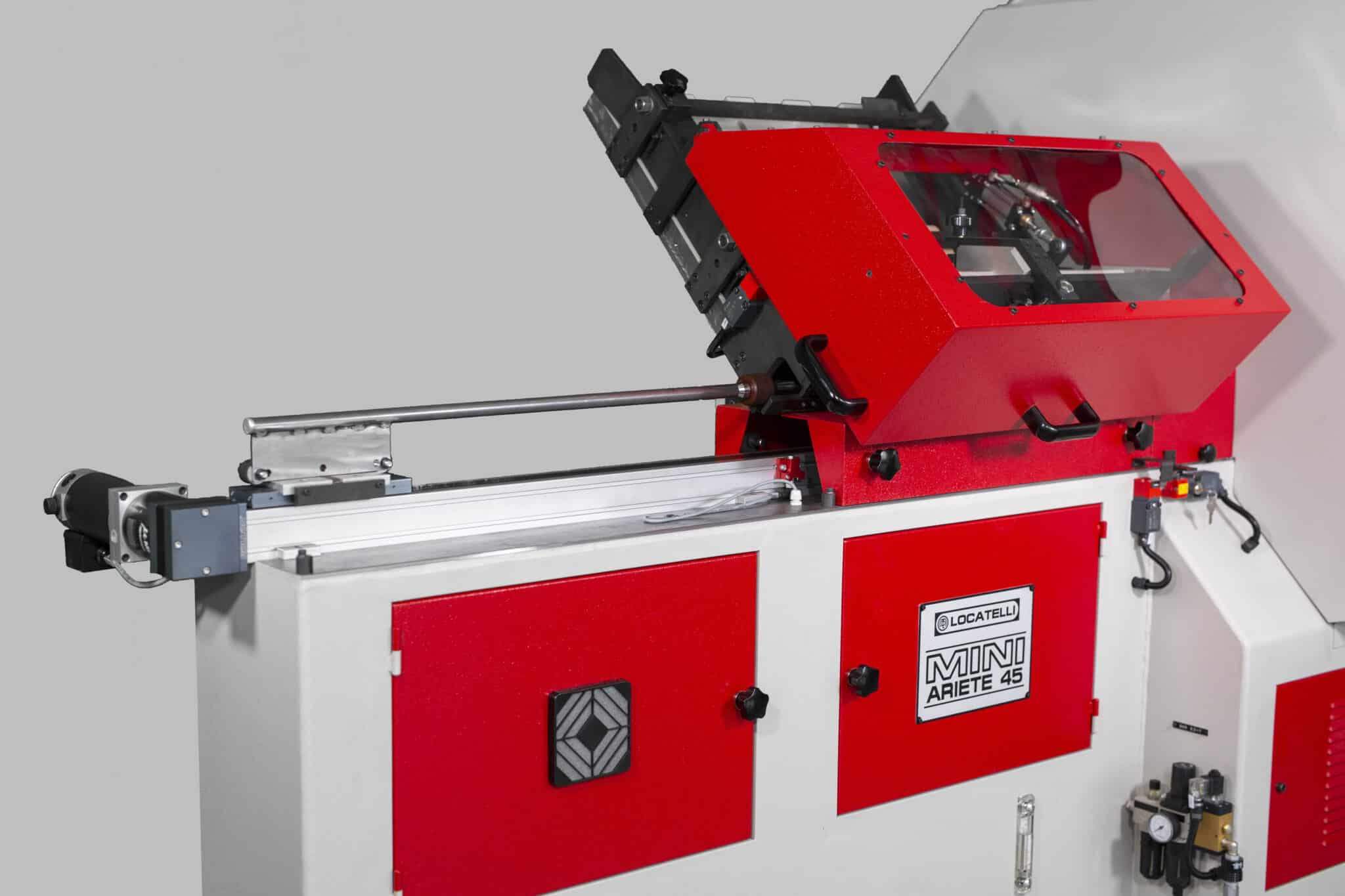

Automatic hydro-pneumatic lathe for mass production of small wooden items with a maximum 46mm diameter from round timber stocks, with minimum wastage on each wooden dowel (20-30 mm long waste) Machine can be fitted with square collets too (in this case, square blanks must be planed). Max square section is 30x30mm. Feeder, collet and bars stop are controlled pneumatically The linear DC motor controls timber stocks advancement Maximum length of work piece 100mm. Machine complete with: • Four tool groups with 70mm stroke, each one with rapid approach devices: a) roughing out b) finishing c) vertical dowel cutting d) parting off. Each tool group is mounted on circular guides for easy adjustment and less maintenance • Tailstock with 120mm stroke with rapid advance, intermediary release, adjustable final pause and blower nozzle for drill bits Maximum round timber stocks length is 600 mm with tolerance of 200 mm. Wooden stock bars from a minimum of 7mm up to maximum of 46mm diameter Program logic control allows freely programmable work sequence of required tools only and fine tuning of each single tool advancement speed Machine complies with CE standards to guarantee highest operator safety The total noise of the plants is less than 85 decibels
Maximum length of the wooden stocks 600 mm - with tolerance 200 mm
Maximum length of work-pieces 100 mm
Round wooden stocks from 7 mm to 46 mm
(on demand up to 50 mm)
Planed max. square section 32x32 mm
Minimum length of off-cut 20-30 mm
