OMK 300
Automatic hydro-pneumatic multi-spindles machine for turning and sanding wooden pieces with a maximum length of 300mm and a maximum square of 100x100mm (on request, it’s possible to machine a maximum square of 120x120mm).
6-station rotary drum with the following stages of operation:
1. Pick-up the piece from the feeder and closure of locking gripper

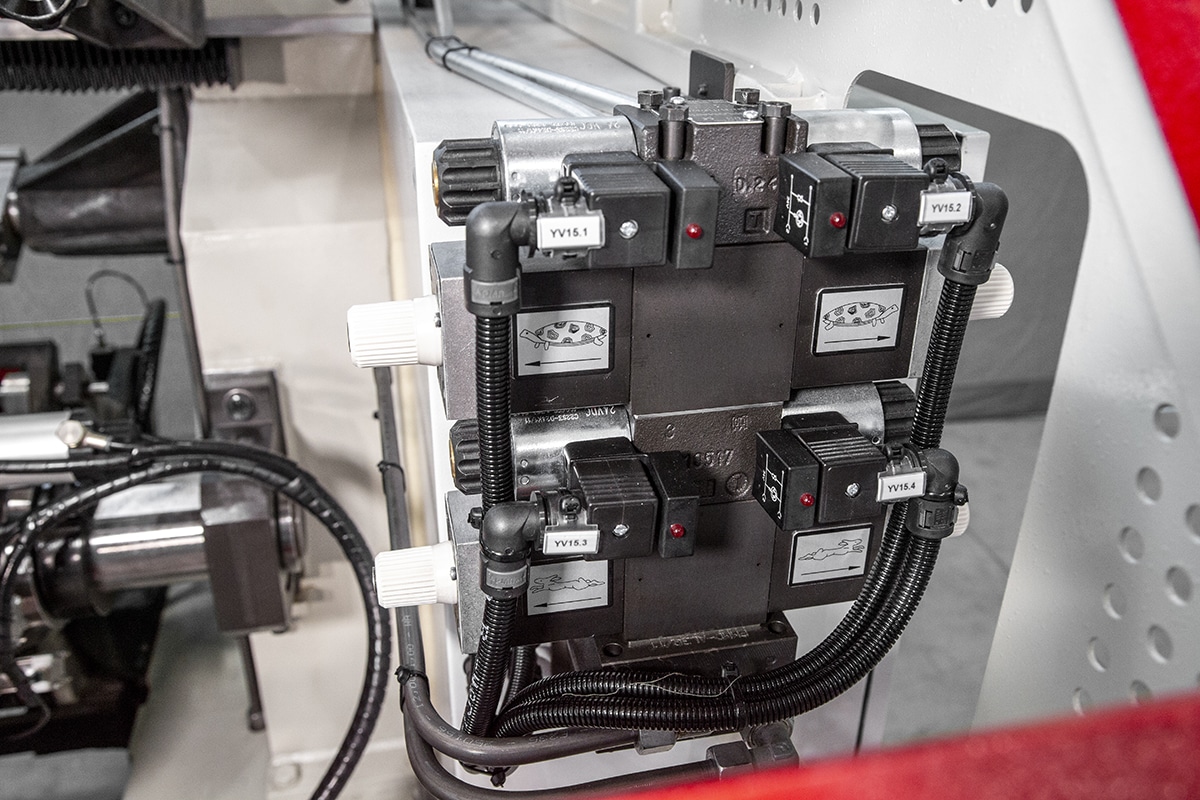

2. 2-Gouges roughing with the option of double work cycles. The gouge slide is hydraulically driven; forwards and backwards speeds can be changed independently
3. Finishing with a hydraulically-controlled profiling tool
4. Initial sanding of the piece with adjustable oscillating brushes
5. Final sanding of the piece with adjustable oscillating brushes
6. Automatic piece ejection or translation to the TRANSFER UF.150/220.
Programmed logic control functioning for immediate fault detection and for easier setting up
On request the following options can be fitted with:
• Cross-drilling unit for 20mm maximum diameter holes and maximum depth of 50mm.
• Cross-drilling unit for 180° holes
• Drilling unit for axial holes mounted on the feeder.
Machine complies with CE standards to guarantee highest operator safety.
Overall noise level of the machine is below 85 decibels.
Weight Kgs. 2770
Maximum length of work-pieces | 300 mm |
Maximum square | 100x100 mm On request, 120x120mm |
Maximum diameter cross-drilling | 15 mm |
Maximum depth cross-drilling | 60 mm |
Cross-drilling unit | 180 |
